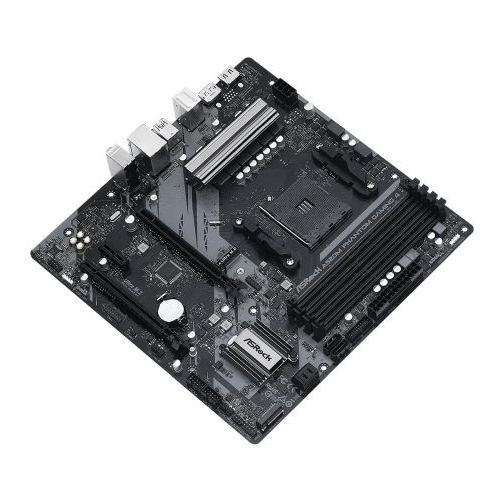

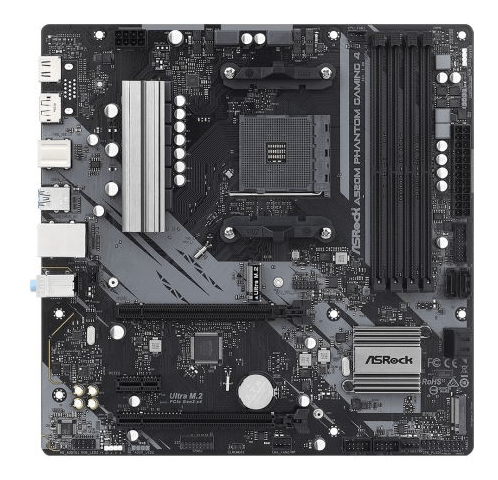

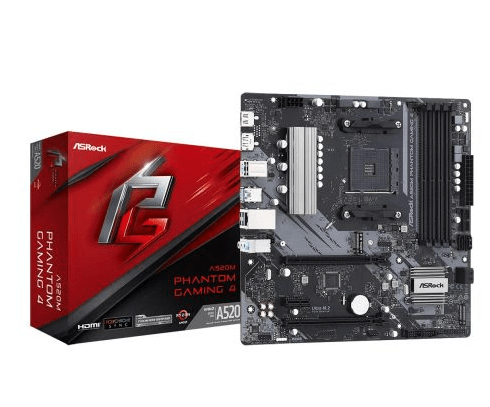

AMD A520 Micro ATX Motherboard – High-Performance & Versatile Compatibility
Upgrade your system with this AMD A520 Micro ATX motherboard, designed for stability, performance, and versatility. With support for AMD Ryzen processors, high-speed DDR4 memory, and multiple connectivity options, this motherboard is ideal for gaming, productivity, and everyday computing.
Product Specifications:
🖥 Form Factor: Micro ATX – Compact and powerful
⚙️ Socket: AMD AM4 – Supports Ryzen processors (Note: Not compatible with Ryzen 5 3400G & Ryzen 3 3200G)
💾 Chipset: AMD A520
Memory Support:
🔹 Technology: DDR4 (Dual Channel)
🔹 Slots: 4 x DIMM
🔹 Speeds: Up to 4533+ MHz (Overclocked)
🔹 Maximum Capacity: 128GB
Graphics & Expansion:
🎮 Integrated Graphics Processor (Varies by CPU)
🔌 Graphics Ports:
✔ 1 x HDMI
✔ 1 x DisplayPort 1.4
🚀 Multi-GPU Support: ❌ (Not supported)
📌 PCI/PCIe Slots:
✔ 2 x PCIe 3.0 x16
✔ 1 x PCIe 3.0 x1
Storage & RAID Support:
💾 Storage Slots:
✔ 4 x SATA III (6Gb/s)
✔ 1 x M.2 (PCIe 2280)
✔ 1 x M.2 (SATA & PCIe 2280)
🔄 RAID Support: RAID 0, 1, 10
Connectivity & Networking:
🌐 Network: Gigabit LAN
🔊 Audio: 7.1 CH HD Audio (Realtek 887/897 Audio Codec)
USB & I/O Ports:
🔌 USB Ports:
✔ 6 x USB 3.2 Gen1 Type-A (4 rear, 2 mid-board)
✔ 6 x USB 2.0 (2 rear, 4 mid-board)

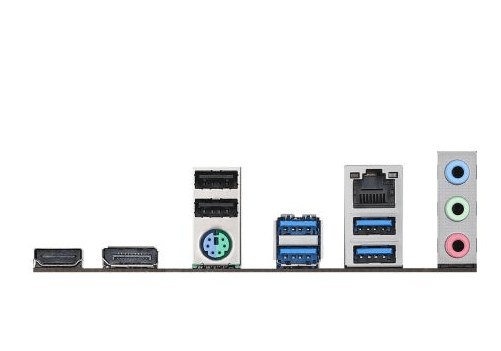

🎛 Back Panel I/O Ports:
✔ 1 x PS/2 Mouse/Keyboard
✔ 1 x HDMI
✔ 1 x DisplayPort 1.4
✔ 4 x USB 3.2 Gen1
✔ 2 x USB 2.0
✔ 1 x RJ-45 LAN Port (LED indicators)
✔ HD Audio Jacks
Internal I/O Connectors:
🛠 Expansion & Connectivity:
✔ 1 x SPI TPM
✔ 1 x Power LED & Speaker Header
✔ 2 x RGB LED Headers
✔ 2 x Addressable LED Headers
✔ 1 x CPU Fan Header
✔ 3 x Chassis/Water Pump Fan Headers
✔ 1 x 24-Pin ATX Power Connector
✔ 1 x 8-Pin 12V Power Connector
✔ 1 x Front Audio Header
✔ 2 x USB 2.0 Headers
✔ 1 x USB 3.2 Gen1 Header
Included Accessories:
📦 2 x SATA Data Cables
📦 2 x Screws for M.2 Slots
Additional Information:
📦 Package Type: Retail
⚖ Package Weight: 0.7920 kg
🛡 Warranty: 2-Year Replacement Warranty
🔥 A reliable and feature-packed motherboard for building a powerful desktop. Order now and experience seamless performance!
