Asrock B450M-HDV R.40, AMD B450, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

Asrock B450M-HDV R.40, AMD B450, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, M.2

£52.90 GBP
£52.90 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

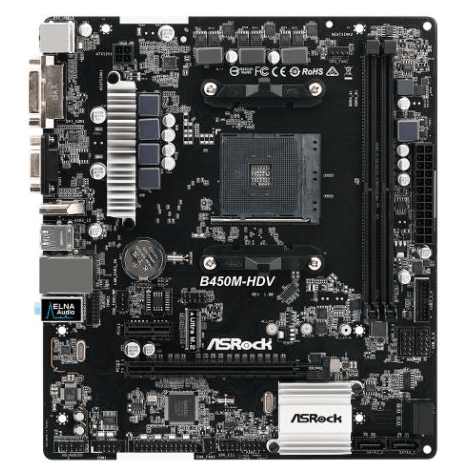

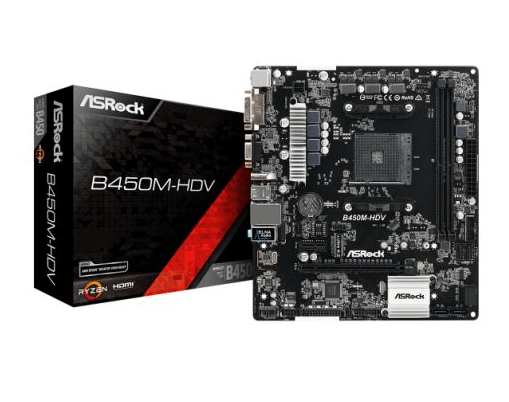

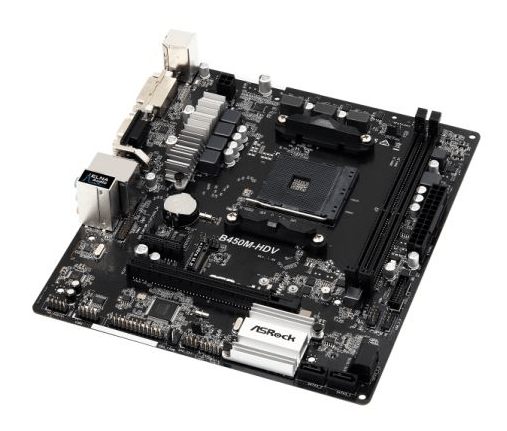

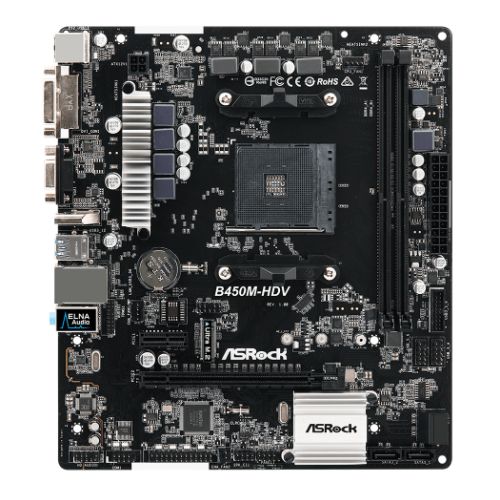

Asrock B450M-HDV Micro ATX Motherboard

Compact, Powerful & Feature-Rich

The AMD B450 Micro ATX motherboard is the perfect foundation for your next gaming rig, workstation, or home PC build. Designed for AMD Ryzen processors, this motherboard delivers reliable performance, high-speed connectivity, and seamless compatibility in a compact Micro ATX form factor.

Key Features

🖥 Motherboard Type: Desktop
📏 Form Factor: Micro ATX
⚙️ Socket: AMD AM4
🔧 Chipset: AMD B450

Performance & Memory

  • CPU Support: Compatible with AMD Ryzen processors (Summit Ridge, Pinnacle Ridge, Raven Ridge APUs)
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • Supported Speeds: 3200+(OC)/2933/2667/2400/2133 MHz
  • Maximum Memory: 32GB

Graphics & Expansion

🎮 Integrated Graphics: AMD Radeon Vega Series (for Ryzen APUs)
📺 Graphics Ports:

  • 1 x VGA
  • 1 x DVI-D
  • 1 x HDMI

🚀 PCI/PCI Express Slots:

  • Ryzen CPUs (Summit & Pinnacle Ridge): 1 x PCIe 3.0 x16
  • Ryzen CPUs (Raven Ridge): 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1

Storage & Connectivity

💾 Storage Options:

  • 4 x SATA III (for traditional SSDs/HDDs)
  • 1 x Ultra M.2 2242/2260/2280 (SATA & PCIe for high-speed NVMe SSDs)
  • RAID Support: RAID 0, 1, 10

🌍 Networking: Gigabit LAN

🎧 Audio: 7.1 CH HD Audio (Realtek ALC887 Codec)

🔌 USB Ports:

  • 6 x USB 3.1 Gen1 (4 rear, 2 mid-board)
  • 6 x USB 2.0 (2 rear, 4 mid-board)

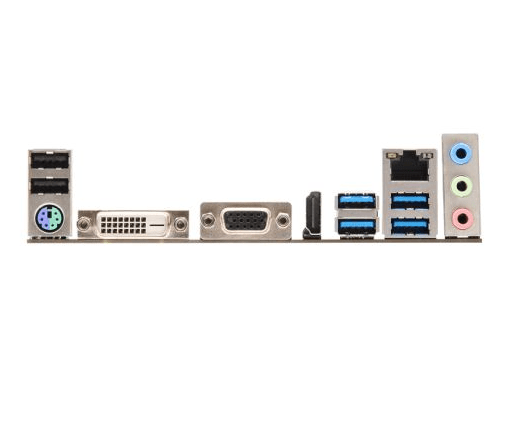

Back Panel I/O Ports

  • 1 x PS/2 Mouse/Keyboard
  • 1 x D-Sub
  • 1 x DVI-D
  • 1 x HDMI
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks

Internal I/O Connectors

  • 1 x Print Port
  • 1 x COM Port
  • 1 x TPM
  • 1 x Chassis Intrusion & Speaker
  • 1 x CPU Fan, 1 x Chassis Fan, 1 x Chassis/Water Pump Fan
  • 1 x 24-pin ATX, 1 x 4-pin 12V Power Connector
  • 1 x Front Audio, 2 x USB 2.0, 1 x USB 3.1 Gen1

Included Accessories

📦 What’s in the Box?

  • Quick Installation Guide
  • Support CD
  • I/O Shield
  • 2 x SATA Data Cables
  • 1 x Screw for M.2 Socket

Additional Details

  • Package Type: Retail
  • Package Weight: 0.8000 kg
  • Warranty: 3-Year Replacement Warranty
