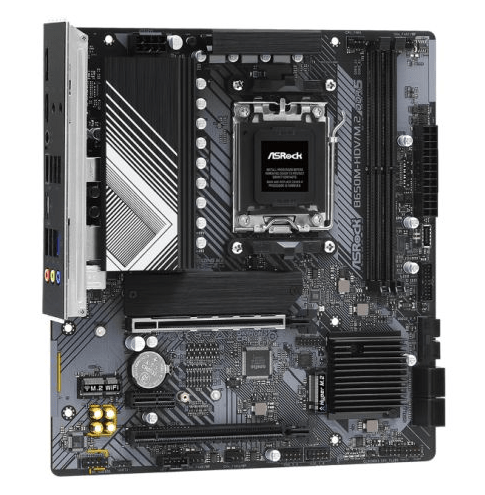

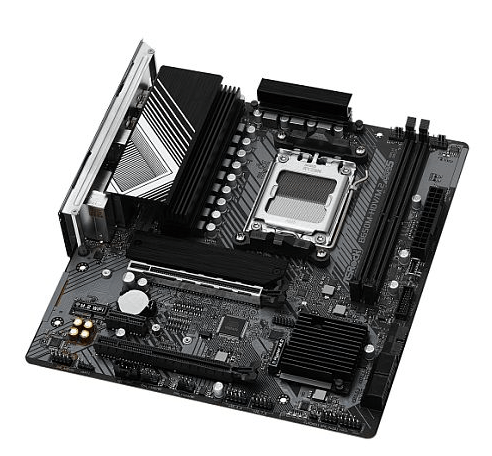

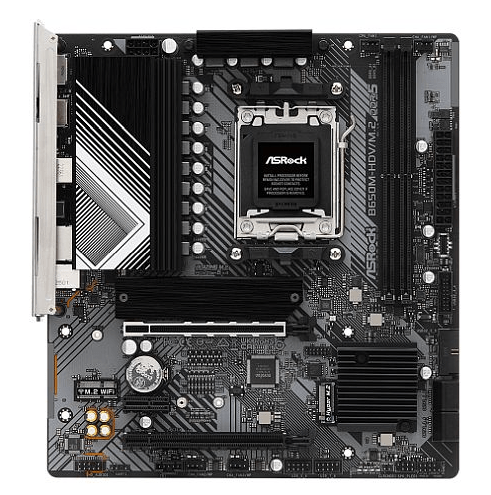

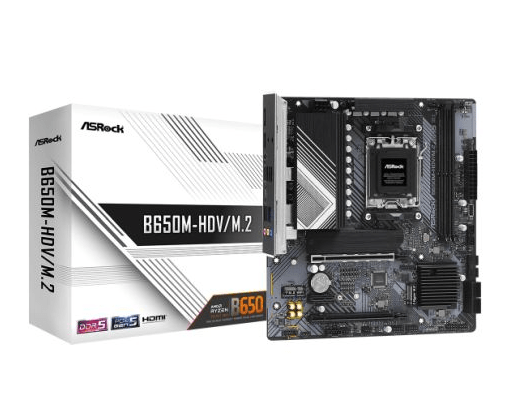

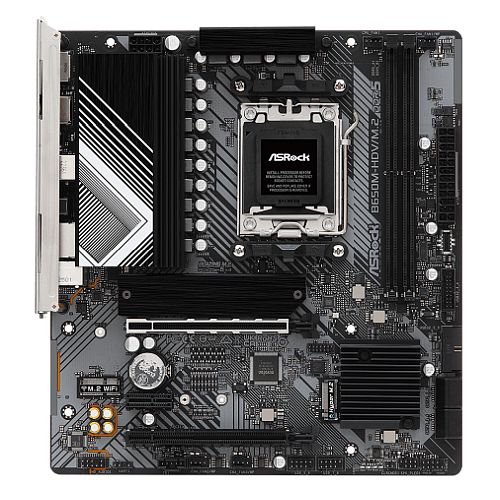

AMD B650 Micro ATX Motherboard – High-Performance AM5 Platform with PCIe 4.0 & DDR5
Take your PC build to the next level with this AMD B650 Micro ATX motherboard, built for power users, gamers, and creators. With support for AMD CrossFire, PCIe 4.0, DDR5 memory up to 6400+ MHz, and high-speed connectivity, this motherboard is designed for cutting-edge performance and future-proof expansion.
Product Specifications:
🖥 Form Factor: Micro ATX
⚙️ Socket: AMD AM5 – Supports latest Ryzen processors
💾 Chipset: AMD B650
Memory Support:
🔹 Technology: DDR5 (Dual Channel)
🔹 Slots: 2 x DIMM
🔹 Speeds: Up to 6400+ MHz (Overclocked)
🔹 Maximum Capacity: 128GB
Graphics & Expansion:
🎮 Integrated Graphics Processor (Varies by CPU)
🔌 Graphics Ports:
✔ 1 x HDMI
✔ 1 x DisplayPort 1.4
🚀 Multi-GPU Support: AMD CrossFire (Enables dual GPU configurations for enhanced performance)
📌 PCI/PCIe Slots:
✔ 1 x PCIe 4.0 x16 (supports x16 mode) (For high-speed GPUs and NVMe storage)
✔ 1 x PCIe 4.0 x16 (supports x4 mode) (For additional expansion cards)
✔ 1 x PCIe 4.0 x1 (For add-on cards such as sound or networking adapters)
Storage & RAID Support:
💾 Storage Slots:
✔ 4 x SATA III (6Gb/s)
✔ 2 x M.2 (PCIe 2280 & 2260/2280) – Ultra-fast NVMe SSD support
🔄 RAID Support:
✔ RAID 0, 1, 10 for SATA storage devices
✔ RAID 0, 1, 10 for M.2 NVMe storage devices
Networking & Audio:
🌐 LAN: 2.5Gb Ethernet (High-speed wired networking for gaming and streaming)
🔊 Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec) (Crystal-clear audio for immersive sound quality)
USB & Connectivity:
🔌 USB Ports:
✔ 1 x USB 3.2 Gen1 Type-C (Rear Panel)
✔ 6 x USB 3.2 Gen1 Type-A (2 at back, 4 at mid-board)
✔ 8 x USB 2.0 (4 at back, 4 at mid-board)
✔ 1 x Front USB 3.2 Gen2 Type-C connector (For high-speed front panel connectivity)

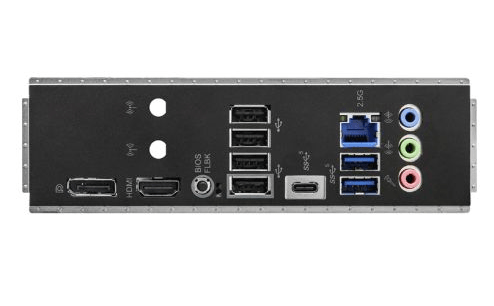

🎛 Back Panel I/O Ports:
✔ 2 x Antenna Mounting Points (For future wireless expansion)
✔ 1 x HDMI
✔ 1 x DisplayPort 1.4
✔ 1 x USB 3.2 Gen1 Type-C
✔ 2 x USB 3.2 Gen1 Type-A
✔ 4 x USB 2.0
✔ 1 x RJ-45 LAN Port (2.5GbE)
✔ 1 x BIOS Flashback Button (For easy BIOS updates)
✔ HD Audio Jacks
Internal I/O & Expansion:
🛠 Internal Connectors:
✔ 1 x SPI TPM Header (For secure encryption support)
✔ 1 x Power LED & Speaker Header
✔ 1 x CPU Fan Header
✔ 3 x Chassis/Water Pump Fan Headers (For optimized cooling solutions)
✔ 1 x 24-pin ATX Power Connector
✔ 1 x 8-pin 12V CPU Power Connector
✔ 1 x Front Panel Audio Header
✔ 1 x Thunderbolt AIC Header (For Thunderbolt expansion cards)
✔ 2 x USB 2.0 Headers
✔ 2 x USB 3.2 Gen1 Headers
✔ 1 x Front Panel USB 3.2 Gen2 Type-C Header
Included Accessories:
📦 1 x User Manual
📦 2 x SATA Data Cables
📦 2 x Screws for M.2 Sockets
Additional Information:
📦 Package Type: Retail
⚖ Package Weight: 1.3500 kg
🛡 Warranty: 3-Year Replacement Warranty
🔥 A powerful, high-speed motherboard designed for gamers, content creators, and professionals looking for next-gen performance. Get ready for faster memory, expanded storage, and high-speed connectivity – order now and future-proof your build!
