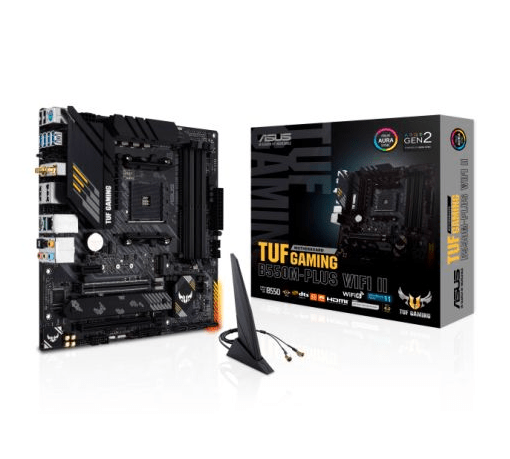

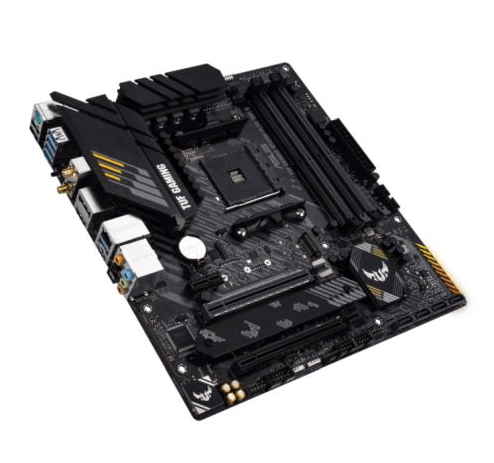

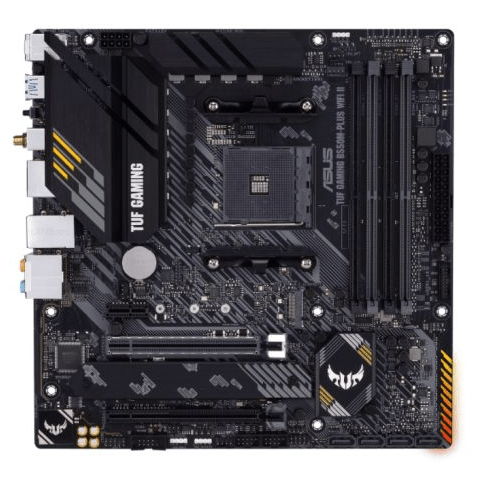

AMD B550 Micro ATX Gaming Motherboard – High Performance & Future-Ready
Unleash the power of next-gen performance with this AMD B550 Micro ATX motherboard, built for gamers, content creators, and PC enthusiasts. With PCIe 4.0 support, Wi-Fi 6, Bluetooth 5.2, and high-speed connectivity, this board delivers exceptional speed, stability, and flexibility for all your computing needs.
Product Specifications:
🖥 Form Factor: Micro ATX
⚙️ Socket: AMD AM4 – Supports Ryzen processors
💾 Chipset: AMD B550
Memory Support:
🔹 Technology: DDR4 (Dual Channel)
🔹 Slots: 4 x DIMM
🔹 Speeds: Up to 4866 MHz (Overclocked)
🔹 Maximum Capacity: 128GB
Graphics & Expansion:
🎮 Integrated Graphics Processor (Varies by CPU)
🔌 Graphics Ports:
✔ 1 x HDMI
✔ 1 x DisplayPort
🚀 PCI/PCIe Slots:
✔ 1 x PCIe 4.0 x16 (for high-speed GPUs and NVMe storage)
✔ 1 x PCIe 3.0 x16 (for additional expansion)
✔ 1 x PCIe 3.0 x1
Storage & RAID Support:
💾 Storage Slots:
✔ 4 x SATA III (6Gb/s)
✔ 1 x M.2 (2242/2260/2280) – SATA & PCIe
✔ 1 x M.2 (2242/2260/2280/22110) – SATA & PCIe (For high-speed NVMe SSDs)
🔄 RAID Support: RAID 0, 1, 10
Networking & Wireless:
🌐 LAN: 2.5Gb Ethernet (Realtek) – Ultra-fast wired networking
📡 Wireless: Wi-Fi 6 (802.11 a/b/g/n/ac/ax) – Next-gen wireless speeds
🔵 Bluetooth: 5.2 – Seamless connectivity with devices
Audio & USB Connectivity:
🔊 Audio: Realtek 7.1 Surround Sound HD Audio Codec – Premium sound quality
🔌 USB Ports:
✔ 2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
✔ 6 x USB 3.2 Gen1 Type-A (4 at back, 2 mid-board)
✔ 6 x USB 2.0 (2 at back, 4 mid-board)

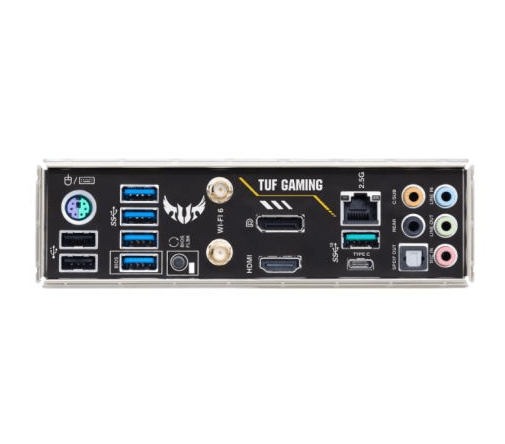

🎛 Back Panel I/O Ports:
✔ 2 x USB 3.2 Gen2 (Type-A & Type-C)
✔ 4 x USB 3.2 Gen1 Type-A
✔ 2 x USB 2.0
✔ 1 x DisplayPort
✔ 1 x HDMI
✔ 1 x Wi-Fi Module
✔ 1 x Realtek 2.5Gb Ethernet
✔ 5 x Audio Jacks
✔ 1 x Optical S/PDIF Out (For high-quality digital audio)
✔ 1 x BIOS FlashBack Button
✔ 1 x PS/2 Keyboard/Mouse Combo
Internal I/O & Expansion:
🛠 Internal Connectors:
✔ 1 x 4-pin CPU Fan
✔ 1 x 4-pin CPU OPT Fan
✔ 2 x 4-pin Chassis Fans
✔ 1 x 24-pin Main Power
✔ 1 x 8-pin +12V CPU Power
✔ 2 x M.2 (Key M) (For ultra-fast NVMe SSDs)
✔ 4 x SATA 6Gb/s (For HDD/SSD storage)
✔ 1 x USB 3.2 Gen1 Header
✔ 2 x USB 2.0 Headers
✔ 1 x Addressable Gen2 Header (For RGB lighting)
✔ 2 x AURA RGB Headers (Syncs with ASUS Aura Sync devices)
✔ 1 x Clear CMOS (For quick BIOS resets)
✔ 1 x COM Port Header
✔ 1 x Front Panel Audio Header
✔ 1 x Speaker Header
✔ 1 x SPI TPM (14-1 Pin) (For hardware security module support)
✔ 1 x 10-1 Pin System Panel Header
Included Accessories:
📦 2 x SATA 6Gb/s Cables
📦 1 x ASUS Wi-Fi Moving Antennas
📦 1 x I/O Shield
📦 1 x M.2 Rubber Package
📦 1 x M.2 SSD Screw Package
📦 1 x TUF Gaming Sticker
📦 1 x Support DVD
📦 1 x TUF Certification Card
📦 1 x User Guide
Additional Information:
📦 Package Type: Retail
⚖ Package Weight: 1.4600 kg
🛡 Warranty: 3 Years Replacement Warranty
🔥 A powerful and feature-rich motherboard built for performance, stability, and customization. Perfect for gaming, content creation, and professional workloads. Order now and take your PC to the next level!
